AC CURRENT SENSORS (IPC SERIES)

AC CURRENT SENSORS (IPC SERIES)

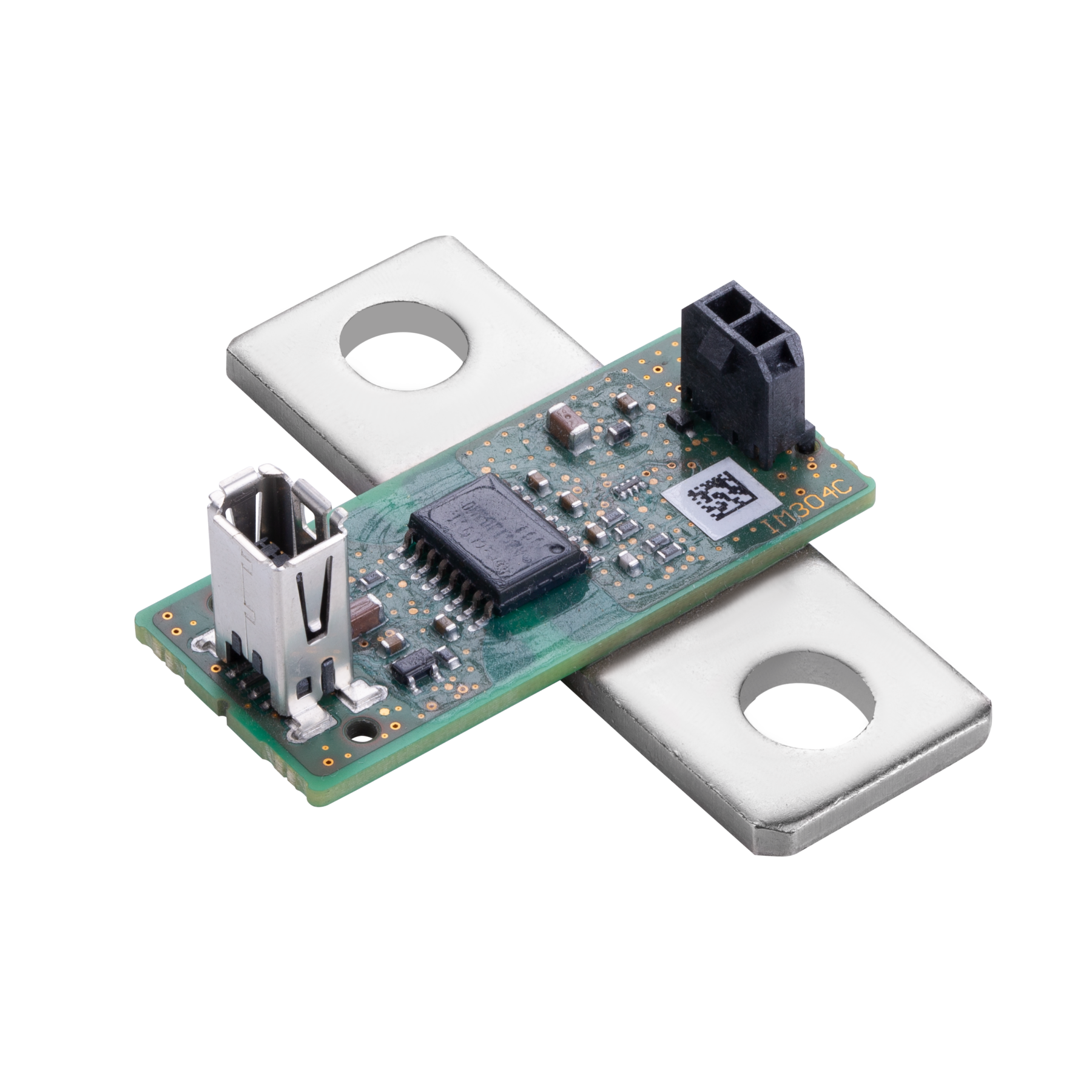

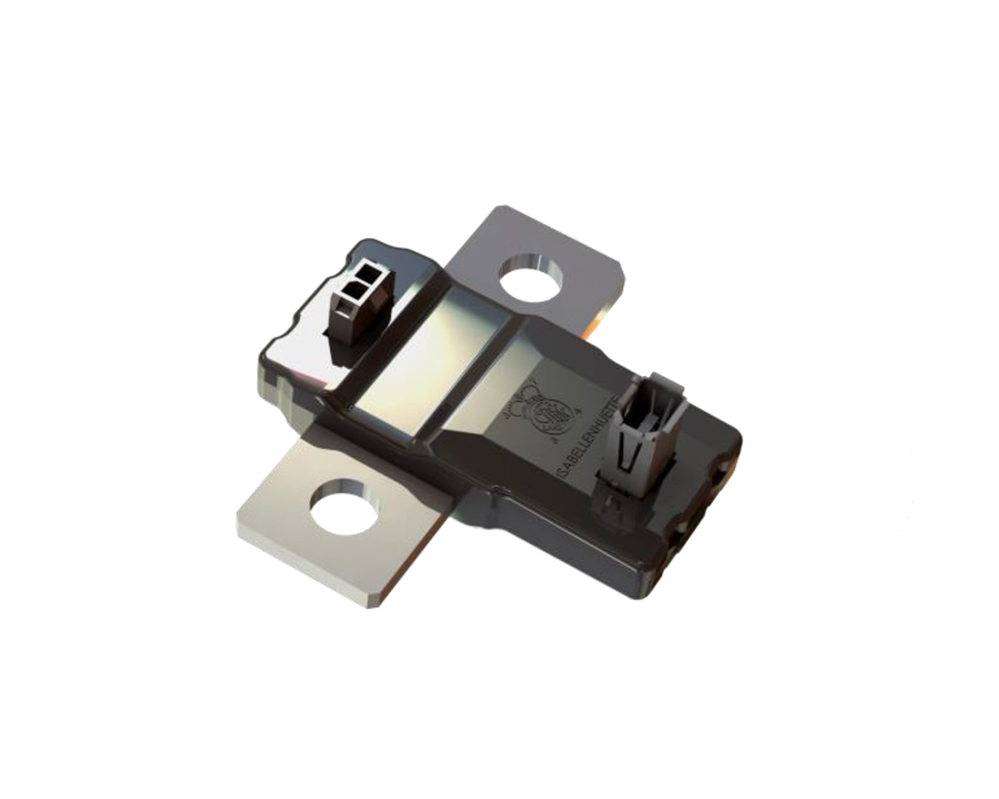

Precision-driven, digital phase current sensors—using shunt-based designs—offer a quick solution across a wide range of possible applications, including automotive and industrial drive technology. Modular designs with measurement ranges between 220 A to 600 A are available.

Due to their high bandwidth, high linearity and very low temperature coefficients, our modules are perfect for the high-precision current measurement in modern control systems and converters:

  • Measurement range 220, 380 and 600A
  • 20 MHz sensing frequency
  • Resolution up to 16 bits
  • Up to 1,500V galvanic signal isolation (IEC 60747-5-2)
  • High side 4-18V power supply
  • Evaluation Kit available
  • Interface: TTL, LVDS

ModelNominal Sensing Range (A)InterfaceSupply Voltage low side (V)HousingProduct Details
IPC-CII-220-LVDS-3-C1220LVDS3.3noView More
IPC-CII-380-LVDS-3-C1380LVDS3.3noView More
IPC-CII-600-LVDS-3-C1600LVDS3.3noView More
