HYBRID MOUNTING

HYBRID MOUNTING

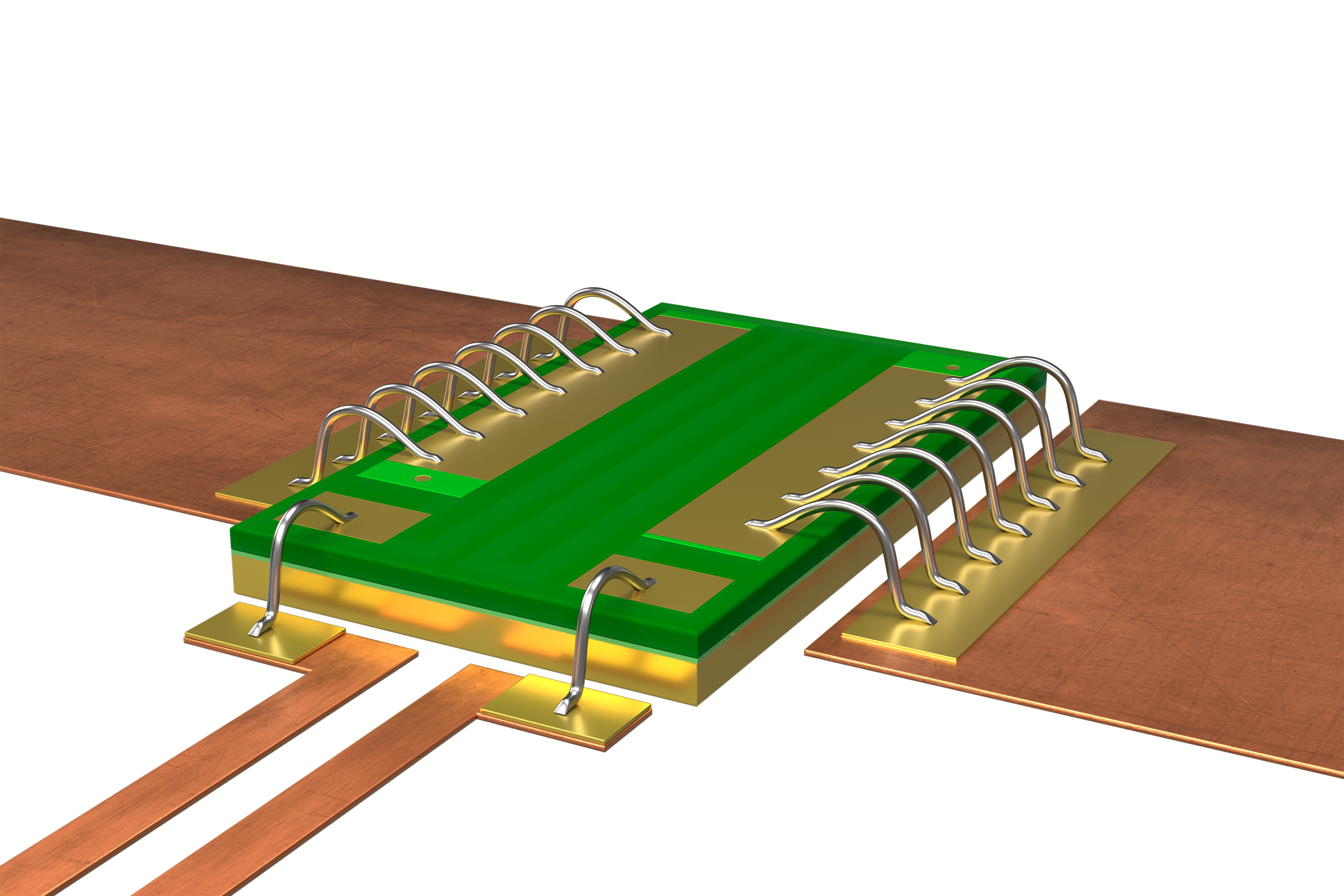

Our bondable resistors (for high-power applications) are durable and offer wide flexibility in design—with excellent heat dissipation and high load capacity. Design features extensive bonding on a conductive DBC substrate.

  • Permanent power up to 20 W
  • Constant currents up to 140 A
  • Mounting: Reflow-, IR-soldering or bonding on substrate
  • 4-terminal-connection technology
  • Conductive DBC-/IMS-soldering assembly
  • Nickel-plated/Au-plated bond pads
  • Low resistance values

PRODUCT FINDER

If you currently spec a competing product, use our product comparison tool to find the IH product that best matches your current spec.

ModelMounting StyleResistance Range (Ω)(Low)Resistance Range (Ω)(High)WattagePackage SizeProduct Details
PLUHybrid0.0010.0015 W2439View More
PMHHybrid0.0050.055 W2512View More
PMH-DHybrid0.0020.0025 W2512View More
